RIVET-RACK
STEEL SHELVING
4 Heavy Rivet Angle Posts with Double Rivet Angle beams at all levels - with particle board shelving
4 Rivet Angle Posts with a full perimeter of Double Rivet Angle beams top & bottom and Single Rivet Angle beams at intermediate levels - with particle board shelving.
RIVET-RACK COMPONENTS

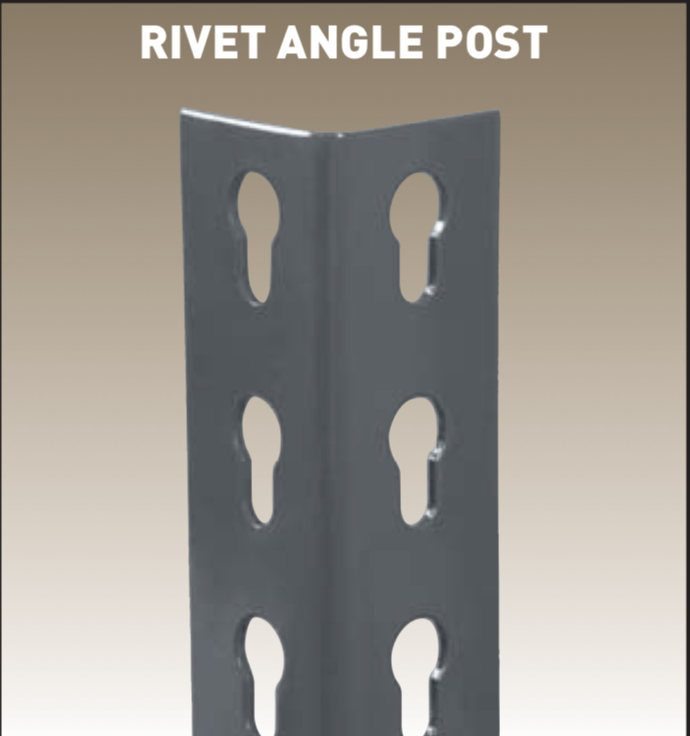

POSTS
13 gauge cold-rolled steel
1-1/2” x 1-1/2” on 1-1/2” centers
Custom configurations available
1-1/2” x 1-1/2” on 1-1/2” centers
| MODEL NUMBER | LENGTH INCHES | WEIGHT LBS |
|---|---|---|
| RP36 | 36 | 1.9 |
| RP48 | 48 | 2.6 |
| RP60 | 60 | 3.2 |
| RP72 | 72 | 3.8 |
| RP84 | 84 | 4.5 |
| RP96 | 96 | 5.1 |
| RP108 | 108 | 5.8 |
| RP120 | 120 | 6.4 |

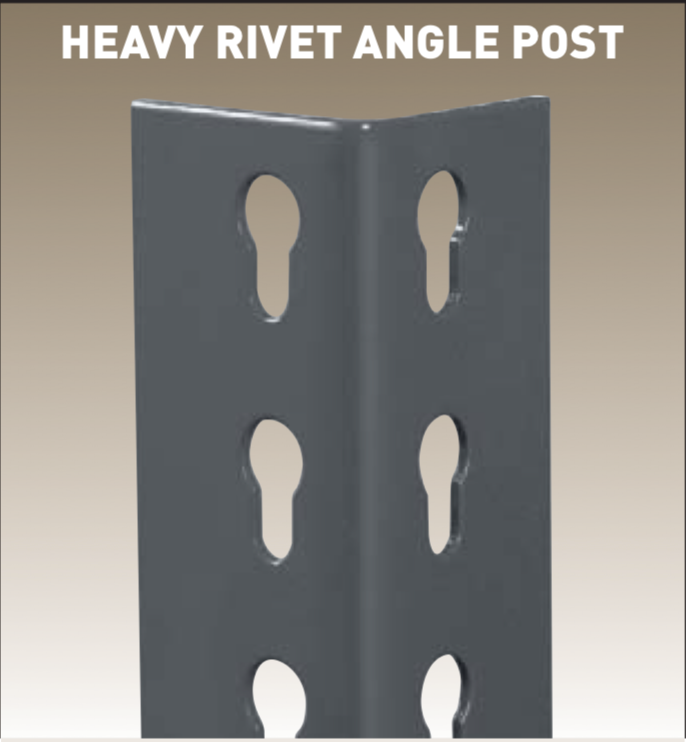

13 gauge cold-rolled steel
1-7/8” x 1-7/8” on 1-1/2” centers
Custom configurations available
1-7/8” x 1-7/8” on 1-1/2” centers
| MODEL NUMBER | LENGTH INCHES | WEIGHT LBS |
|---|---|---|
| RPH72 | 72 | 4.8 |
| RPH84 | 84 | 5.6 |
| RPH96 | 96 | 6.4 |
| RPH108 | 108 | 7.0 |
| RPH120 | 120 | 8.0 |
| RPH144 | 144 | 9.6 |
| RPH168 | 168 | 11.2 |
| RPH192 | 192 | 2.8 |
| RPH216 | 216 | 14.4 |
| RPH240 | 240 | 16 |
| RPH264 | 264 | 17.6 |
| RPH288 | 288 | 19.2 |

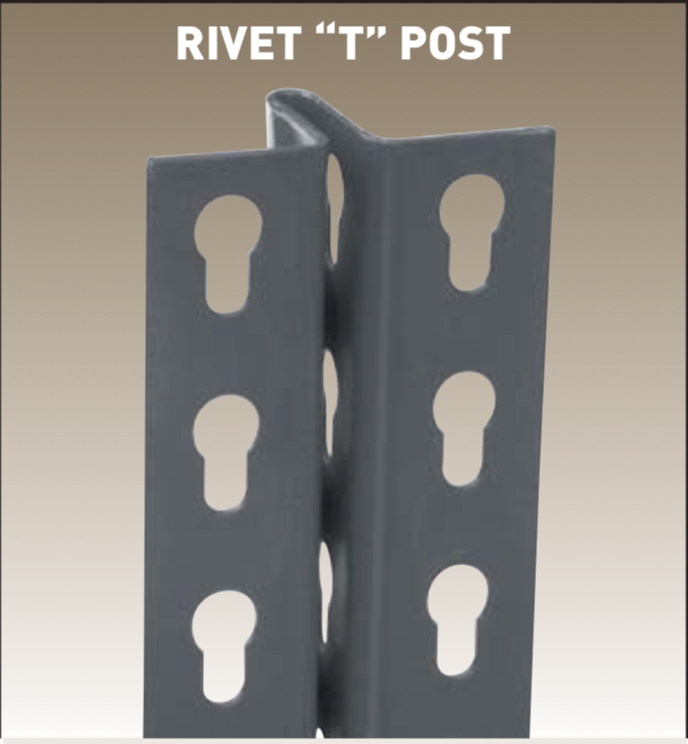

14 gauge cold-rolled steel
3” x 1-1/2” on 1-1/2” centers
Custom configurations available
3” x 1-1/2” on 1-1/2” centers
| MODEL NUMBER | LENGTH INCHES | WEIGHT LBS |
|---|---|---|
| RTP72 | 72 | 8.0 |
| RTP84 | 84 | 9.5 |
| RTP96 | 96 | 11.0 |
| RTP108 | 108 | 12.0 |
| RTP120 | 120 | 12.5 |
| RTP144 | 144 | 14.0 |
| RTP168 | 168 | 15.5 |
| RTP192 | 192 | 17.0 |
| RTP216 | 216 | 19.1 |
| RTP240 | 240 | 21.2 |
| RTP264 | 264 | 23.3 |
| RTP288 | 288 | 25.5 |
RIVET-RACK ACCESSORIES
13 gauge cold-rolled steel
1-1/2” x 1-1/2” on 1-1/2” centers
Custom configurations available
1-1/2” x 1-1/2” on 1-1/2” centers
| MODEL NUMBER | LENGTH INCHES | WEIGHT LBS |
|---|---|---|
| RTB12 | 12 | 1.4 |
| RTB15 | 15 | 1.6 |
| RTB16 | 16 | 1.8 |
| RTB18 | 18 | 1.8 |
| RTB24 | 24 | 2.3 |
| RTB30 | 30 | 2.7 |
| RTB36 | 36 | 3.2 |
| RTB42 | 42 | 3.6 |
| RTB48/td> | 48 | 4.1 |

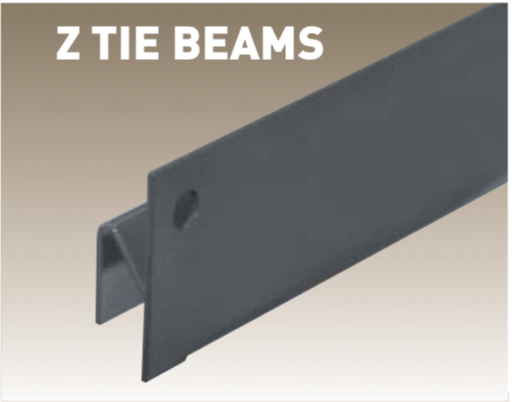

14 gauge 1-1/8" x 2-1/2"
| MODEL NUMBER | LENGTH INCHES | WEIGHT LBS |
|---|---|---|
| ZTB18 | 18 | 1.5 |
| ZTB24 | 24 | 1.9 |
| ZTB30 | 30 | 2.3 |
| ZTB32 | 32 | 2.6 |
| ZTB36 | 36 | 2.9 |
| ZTB42 | 42 | 3.4 |
| ZTB48 | 48 | 3.9 |

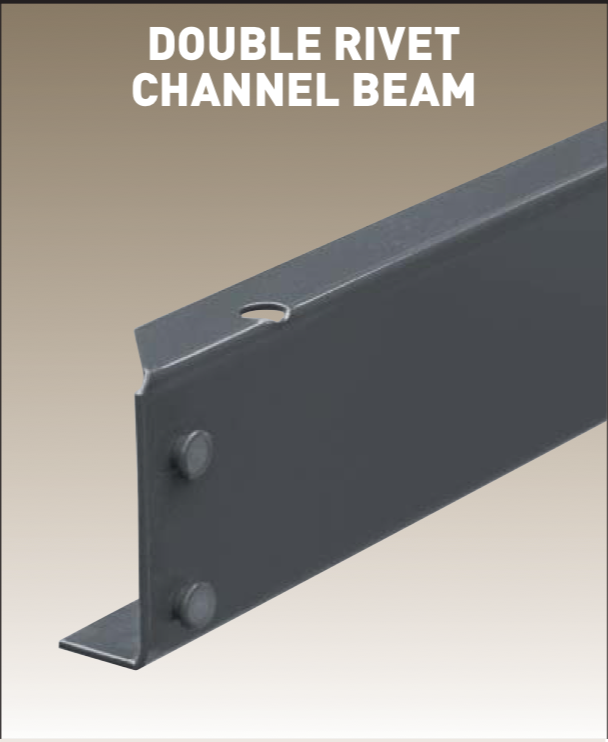

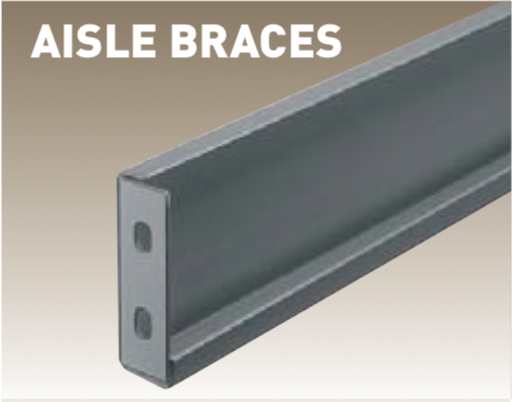

13 gauge channel formed steel
One additional return flange on top for added strength - end tabs are flanged at 90º angles with holes punched on 1-1/2”centers
One additional return flange on top for added strength - end tabs are flanged at 90º angles with holes punched on 1-1/2”centers
| MODEL NUMBER | LENGTH INCHES | WEIGHT LBS |
|---|---|---|
| RRAB30 | 30 | 4.6 |
| RRAB36 | 36 | 5.4 |
| RRAB42 | 42 | 6.3 |
| RRAB48 | 48 | 7.1 |

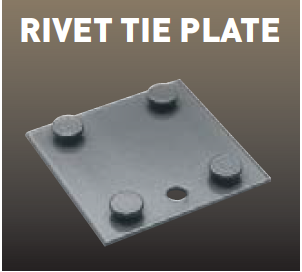

Model No: RTP
Weight: 0.2
Lock posts together to join
two or more racks side by side.
Weight: 0.2
Lock posts together to join
two or more racks side by side.
RIVET RAK
CONNECTOR
Model No: RRC
Weight: 0.5
Model No: RRC
Weight: 0.5

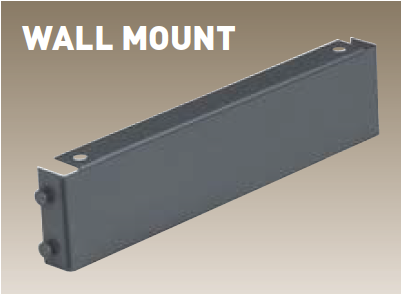

Rivet Wall Mount 3”
Model No: RRWM-3
Weight: 0.8 lbs.
Rivet Wall Mount 9”
Model No: RRWM-9
Weight: 2.3 lbs.

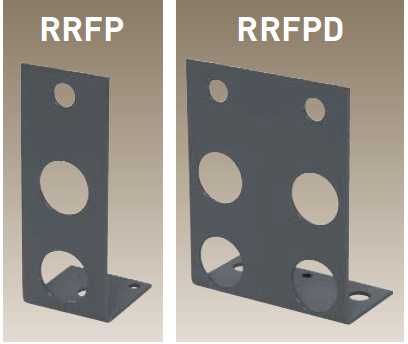

RIVET FOOT PLATES
Model No:RRFP
Weight: 0.2 lbs.
Model No:RRFPD
Weight: 0.4 lbs.

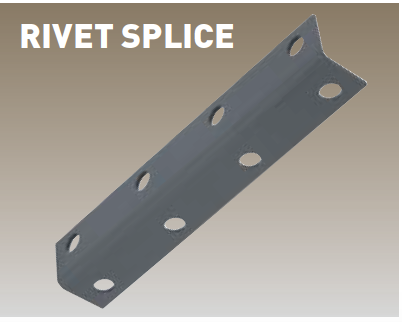

Model No: RSP
Weight: 0.5 lbs.
1” x 1” x 5-1/2”
RIVET-RACK COMPONENTS
BEAMS

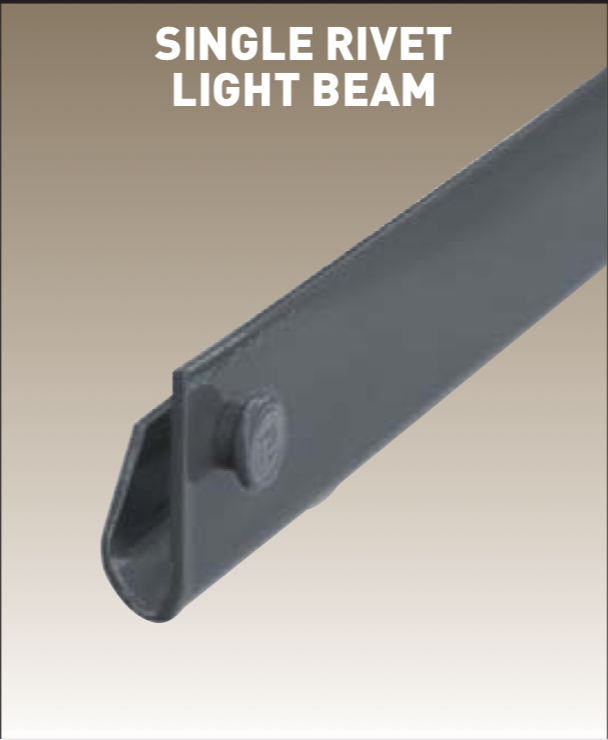

14 gauge 1-1/4” x 1-1/8”
Custom configurations available
| MODEL NUMBER | LENGTH INCHES | WEIGHT LBS |
|---|---|---|
| RBL12 | 12 | 0.6 |
| RBL15 | 15 | 0.7 |
| RBL16 | 16 | 1.2 |
| RBL18 | 18 | 0.9 |
| RBL18 | 18 | 0.9 |
| RBL24 | 24 | 1.3 |
| RBL30 | 30 | 1.6 |
| RBL36 | 36 | 1.9 |
| RBL42 | 42 | 2.2 |
| RBL48 | 48 | 2.4 |

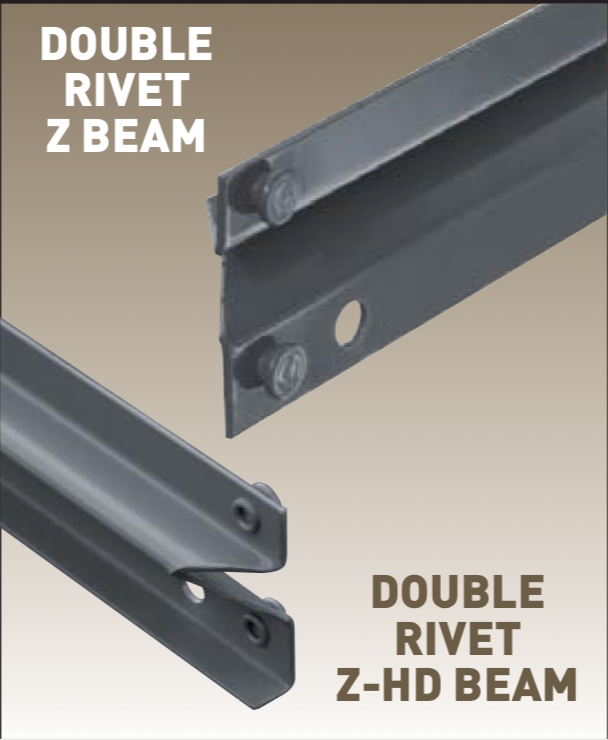

Z-BEAM: 14 gauge 1-1/8" x 2-1/4"
Z-HD: 14 gauge 1-1/8" x 2-1/2"
| MODEL NUMBER | LENGTH INCHES | WEIGHT LBS |
|---|---|---|
| ZB12 | 12 | 1.0 |
| ZB15 | 15 | 1.6 |
| ZB16 | 16 | 1.6 |
| ZB18 | 18 | 1.6 |
| ZB24 | 24 | 2.0 |
| ZB30 | 30 | 2.6 |
| ZB32 | 32 | 2.8 |
| ZB36 | 36 | 3.0 |
| ZB42 | 42 | 3.6 |
| ZB48 | 48 | 4.0 |
| ZB54 | 54 | 5.0 |
| ZB60 | 60 | 5.0 |
| ZB69 | 69 | 5.9 |
| ZB72 | 72 | 6.0 |

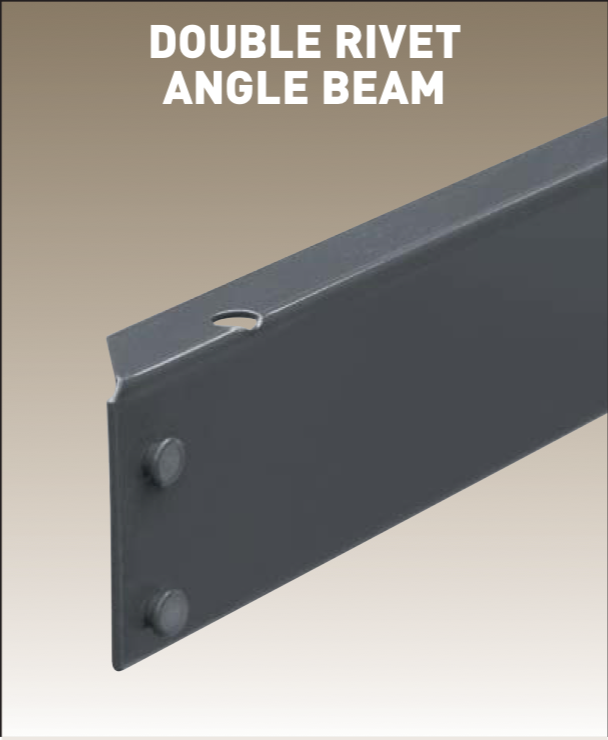

14 gauge 1-1/8" x 2-3/4"
| MODEL NUMBER | LENGTH INCHES | WEIGHT LBS |
|---|---|---|
| RBA12 | 12 | 1.0 |
| RBA15 | 15 | 1.2 |
| RBA16 | 16 | 1.5 |
| RBA18 | 18 | 1.5 |
| RBA24 | 24 | 2.0 |
| RBA30 | 30 | 2.5 |
| RBA36 | 36 | 2.9 |
| RBA42 | 42 | 3.4 |
| RBA48 | 48 | 3.9 |
| RBA60 | 60 | 4.9 |
| RBA69 | 69 | 5.6 |
| RBA72 | 72 | 5.9 |
| RBA84 | 84 | 6.8 |
| RBA96 | 96 | 7.8 |
14 gauge 1-1/8" x 2-3/4"
| MODEL NUMBER | LENGTH INCHES | WEIGHT LBS |
|---|---|---|
| RBC48 | 48 | 5.6 |
| RBC60 | 60 | 7.0 |
| RBC69 | 69 | 8.1 |
| RBC72 | 72 | 8.4 |
| RBC84 | 84 | 9.8 |
| RBC96 | 96 | 11.2 |
RIVET-RACK DECKING OPTIONS

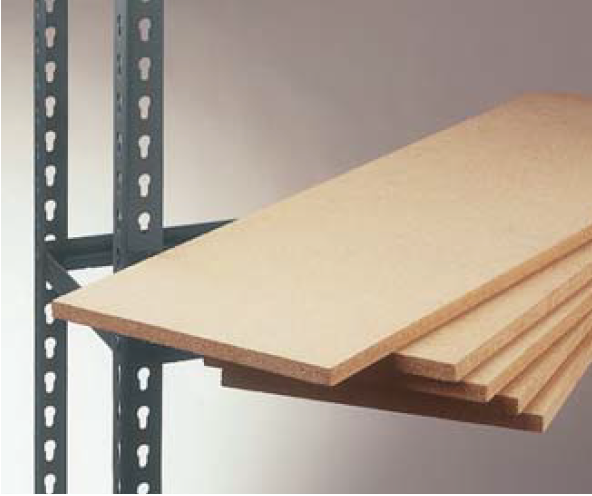

PARTICLE BOARD SHELVES
Our particle board decking is 5/8”
thick and pre-cut to size for use with
rivet rack. For general
purpose and record storage applications.
(See price list for all sizes)
Our particle board decking is 5/8”
thick and pre-cut to size for use with
rivet rack. For general
purpose and record storage applications.
(See price list for all sizes)

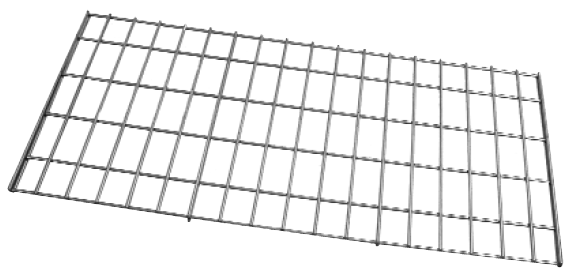

RIVET RACK WIRE DECKING
Color: Grey
Popular Sizes
Color: Grey
Popular Sizes
| MODEL NUMBER | D x W (INCHES) |
|---|---|
| WD1836 | 18 X 36 |
| WD1848 | 18 X 48 |
| WD2448 | 24 X 48 |
| WD2472 | 24 X 72 |
| WD3069 | 30 X 69 |
| WD3636 | 36 X 36 |
| WD3648 | 36 X 48 |
| WD3672 | 36 X 72 |
| WD4848 | 48 X 48 |
| WD4872 | 48 X 72 |
SPECIALTY RIVET-RACK
Specialty Rivet-Rak Units are preconfigured, easy to assemble, strong and durable.
These units are constructed with boltless rivet-rak components. Units are designed for a wide variety of applications. Horizontal surfaces are generally created with particle board. Because they are built from Rivet-Rak components these units require no sway bracing allowing easy access. All shelves are adjustable on1-1/2”centers and are simple to assemble and flexible.
Used In Many Applications: • Industrial • Office • Commercial Record Storage • Warehouse • Work Stations
Select from our standard units and sizes, or have custom design units to meet your specific needs. Particle board is the standard top surface for these specialty racks, however they can be outfitted with other surfaces. Contact us for further information.

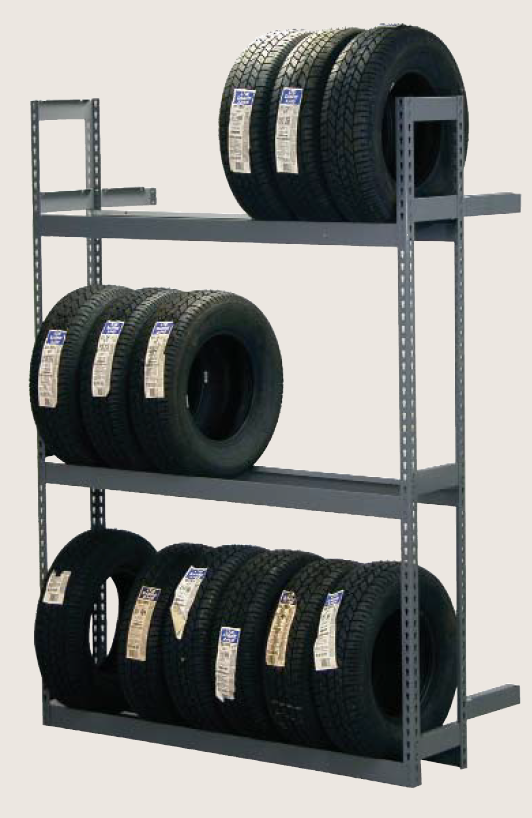

TIRE RACK
TIRE RACK
Specialized sloped shelves hold tires firmly on rack.
Tire rack can be bolted to wall for additional stability.
Row supports available for back to back rows.
See price list for wall and row supports.
Specialized sloped shelves hold tires firmly on rack.
Tire rack can be bolted to wall for additional stability.
Row supports available for back to back rows.
See price list for wall and row supports.
| MODEL NUMBER |
Size D x W x H |
|---|---|
| TR126084 | 12" x 60" x 84" |
TIRE RACK ACCESSORIES

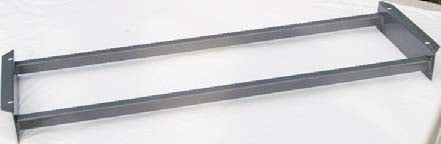

RIVET RACK
MUFFLER HOLDER
Model Number: RRMUFFH Size: 12”D X 36”W
Model Number: RRMUFFH Size: 12”D X 36”W

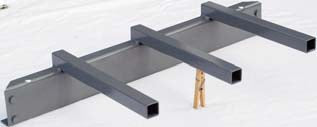

RIVET RACK
BELT HOLDER
Model Number: RRBELTH Size: 18”D X 12”W
Model Number: RRBELTH Size: 18”D X 12”W
RECORD STORAGE
| MODEL NUMBER |
Size D x W x H |
|---|---|
| RS326984 | 32" x 69" x 84" |
RECORD STORAGE
| MODEL NUMBER |
Size D x W x H |
|---|---|
| RS164284 | 16" x 42" x 84" |

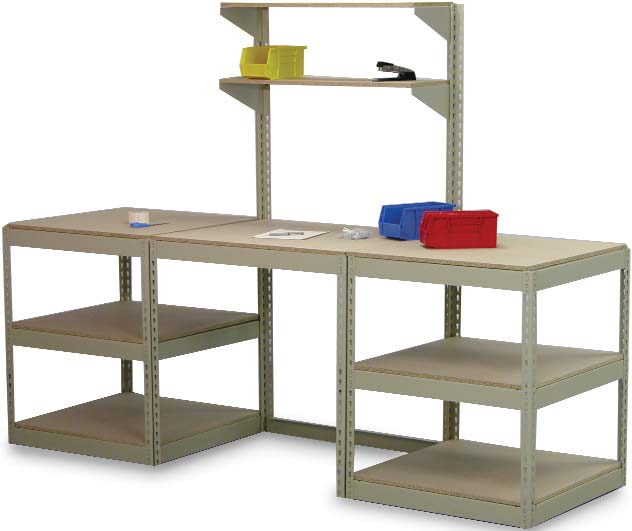

WORK CENTER
| MODEL NUMBER |
Size D x W x H |
|---|---|
| WC309836 | 30" x 90" x 36" |

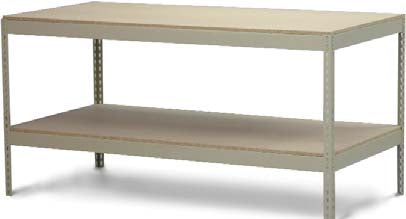

PACKAGING BENCH
| MODEL NUMBER |
Size D x W x H |
|---|---|
| PB367236 | 36" x 72" x 36" |

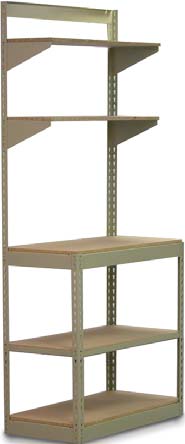

OFFICE UNIT
| MODEL NUMBER |
Size D x W x H |
|---|---|
| OF183684 | 18" x 36" x 84" |
RIVET-RACK PRE-CONFIGURED UNITS
SPACEMASTER RIVET-RACK
Spacemaster Rivet-Rak is best suited for light and medium applications Double Rivet Beam on top and bottom provide stability. Single Rivet Beams provide maximum vertical space on intermediate levels. Shelf sizes up to 36” x 48”. Shelves adjust on 1-1/2” centers. Double entry access as no diagonal brace is required. Boltless, clipless construction assembles in minutes. Rivet-Rack
Custom configurations available
Spacemaster Rivet-Rak is best suited for light and medium applications Double Rivet Beam on top and bottom provide stability. Single Rivet Beams provide maximum vertical space on intermediate levels. Shelf sizes up to 36” x 48”. Shelves adjust on 1-1/2” centers. Double entry access as no diagonal brace is required. Boltless, clipless construction assembles in minutes. Rivet-Rack
| Rivet-Rack | Description |
|---|---|
| RVR84-1236-6 | RIVET-RACK 12” x 36” x 84” w/6 SHELVES |
| RVR84-1836-6 | RIVET-RACK 18” x 36” x 84” w/6 SHELVES |
| RVR84-2436-6 | RIVET-RACK 24” x 36” x 84” w/6 SHELVES |
| RVR84-3636-6 | RIVET-RACK 36” x 36” x 84” w/6 SHELVES |
| RVR84-1248-6 | RIVET-RACK 12” x 48” x 84” w/6 SHELVES |
| RVR84-1848-6 | RIVET-RACK 18” x 48” x 84” w/6 SHELVES |
| RVR84-2448-6 | RIVET-RACK 24” x 48” x 84” w/6 SHELVES |
| RVR84-3648-6 | RIVET-RACK 36” x 48” x 84” w/6 SHELVES |
| RVR84-1236-7 | RIVET-RACK 12” x 36” x 84” w/7 SHELVES |
| RVR84-1836-7 | RIVET-RACK 18” x 36” x 84” w/7 SHELVES |
| RVR84-2436-7 | RIVET-RACK 24” x 36” x 84” w/7 SHELVES |
| RVR84-3636-7 | RIVET-RACK 36” x 36” x 84” w/7 SHELVES |
| RVR84-1248-7 | RIVET-RACK 12” x 48” x 84” w/7 SHELVES |
| RVR84-1848-7 | RIVET-RACK 18” x 48” x 84” w/7 SHELVES |
| RVR84-2448-7 | RIVET-RACK 24” x 48” x 84” w/7 SHELVES |
| RVR84-3648-7 | RIVET-RACK 36” x 48” x 84” w/7 SHELVES |
| RVR84-1236-8 | RIVET-RACK 12” x 36” x 84” w/8 SHELVES |
| RVR84-1836-8 | RIVET-RACK 18” x 36” x 84” w/8 SHELVES |
| RVR84-2436-8 | RIVET-RACK 24” x 36” x 84” w/8 SHELVES |
| RVR84-3636-8 | RIVET-RACK 36” x 36” x 84” w/8 SHELVES |
| RVR84-1248-8 | RIVET-RACK 12” x 48” x 84” w/8 SHELVES |
| RVR84-1848-8 | RIVET-RACK 18” x 48” x 84” w/8 SHELVES |
| RVR84-2448-8 | RIVET-RACK 24” x 48” x 84” w/8 SHELVES |
| RVR84-3648-8 | RIVET-RACK 36” x 48” x 84” w/8 SHELVES |
BULK MASTER RIVET-RACK
Bulk Master Rivet-Rak is best suited for heavy duty applications
Custom configurations available
Bulk Master Rivet-Rak is best suited for heavy duty applications
| Model# | Depth | Width | Height |
|---|---|---|---|
| 84-1848-4 | 18” | 48” | 84” |
| 84-1848-4T | WITH 1 TIE BEAM | 48” | 84” |
| 84-2448-4 | 24" | 48” | 84” |
| 84-2448-4T | WITH 1 TIE BEAM | 48” | 84” |
| 84-3648-4 | 36" | 48” | 84” |
| 84-3648-4T | WITH 1 TIE BEAM | 48” | 84” |
| 84-4848-4 | 48" | 48” | 84” |
| 84-4848-4T | WITH 1 TIE BEAM | 48” | 84” |
| 84-1860-4 | 18" | 60” | 84” |
| 84-1860-4T | WITH 1 TIE BEAM | 60” | 84” |
| 84-2460-4 | 24" | 60” | 84” |
| 84-2460-4T | WITH 1 TIE BEAM | 60” | 84” |
| 84-3660-4 | 36" | 60” | 84” |
| 84-3660-4T | WITH 1 TIE BEAM | 60” | 84” |
| 84-4872-4 | 48" | 60” | 84” |
| 84-4872-4T | WITH 1 TIE BEAM | 60” | 84” |
| 84-1872-4 | 18" | 72” | 84” |
| 84-1872-4T | WITH 1 TIE BEAM | 72” | 84” |
| 84-2472-4 | 24" | 72” | 84” |
| 84-2472-4T | WITH 1 TIE BEAM | 72” | 84” |
| 84-3672-4 | 36" | 72” | 84” |
| 84-3672-4T | WITH 1 TIE BEAM | 72” | 84” |
| 84-4872-4 | 42" | 72” | 84” |
| 84-4872-4T | WITH 1 TIE BEAM | 72” | 84” |
| 84-1896-4 | 18" | 96” | 84” |
| 84-1896-4T | WITH 1 TIE BEAM | 96” | 84” |
| 84-2496-4 | 24" | 96” | 84” |
| 84-2496-4T | WITH 1 TIE BEAM | 96” | 84” |
| 84-3696-4 | 36" | 96” | 84” |
| 84-3696-4T | WITH 1 TIE BEAM | 96” | 84” |
| 84-4896-4 | 42" | 96” | 84” |
| 84-4896-4T | WITH 1 TIE BEAM | 96” | 84” |
